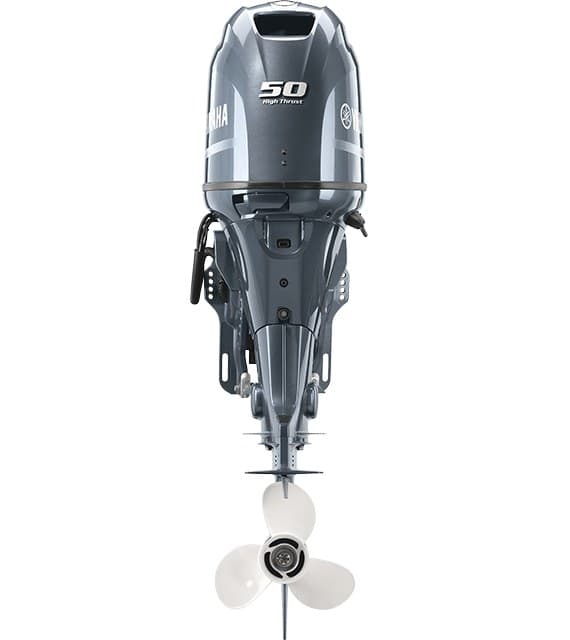

Yamaha F50 High Thrust
Our 996-cc 50-hp High Thrust outboard has the extra measure of muscle you need for pushing heavy loads, such as a loaded pontoon.
All Yamaha outboards
High Thrust
F50 High Thrust
- Power
- 50 hp
- Configuration
- Inline 4
- Displacement
- 1.0L
- Weight
- 117kg (262 lbs)
Authorizeddealer
View on Yamaha site dealerAbout this engine
Our 996-cc 50-hp High Thrust outboard has the extra measure of muscle you need for pushing heavy loads, such as a loaded pontoon. Its SOHC four-cylinder design, composite long-track intake system, large lower unit and high gear ratio deliver powerful punch in a compact design.
Key features
- More Thrust
- Max Muscle
- Optimum Performance
- Single Overhead Camshaft
- Fuel Economy
- ERGONOMIC CONTROL
- EASY ENGINE FLUSHING
Full specifications
- Weight †
- 117kg (262 lbs)
- Full Throttle RPM Range
- 5000 ~ 6000 rpm
- Fuel Induction System
- EFI
- Recommended Engine Oil
- Yamalube® 4M (See owner's manual)
- Engine Type
- Inline 4
- Displacement
- 1.0L
- Bore x Stroke
- 65 x 75mm (2.56 x 2.95 in.)
- Prop Shaft Horsepower
- 50hp @ 5500rpm
- Alternator Output at W.O.T.
- 16 Amp
- Compression Ratio
- 9.5:1
- Recommended Fuel
- Octane 87
- Recommended Fuel Filtration
- Yamaha 10-Micron Fuel/Water Separating Filter (external)
- C.A.R.B. Rating
- 3-Star
- Exhaust
- Through Propeller
- Intake
- 8
- Ignition
- TCI Microcomputer
- Spark Plug
- DPR6EB-9
- Starting System
- Electric
- Lubrication
- Wet Sump
- Engine Oil Capacity
- 2.1L/1.9L
- Recommended Cooling
- Thermostatic Control
- Ethanol Blend Limit
- 10% Maximum
- Gear Ratio
- 2.33:1
- Gear Shift
- Forward, Neutral, Reverse
- Shaft Length
- 20"
- Degree of Tilt
- 69°
- Degree of Trim
- -4° through +16°
- Mounting Centers
- N/A
- Steering Angle (maximum)
- 40° from center, either direction
- Warranty
- Limited 3 Year Limited Pleasure Boat - 1 Year Limited Commercial
