Yamaha / Jet Drive

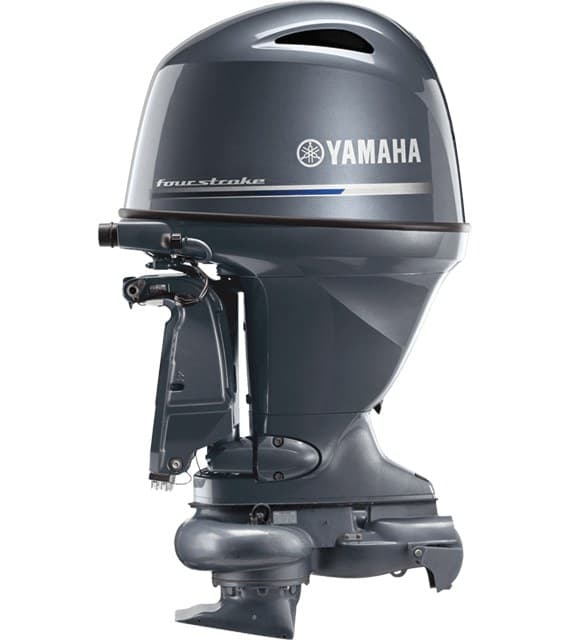

Yamaha F115 Jet
Our 1.8-liter F115 Jet Drive outboard produces 80 hp at the pump.
All Yamaha outboards
Jet Drive
F115 Jet
- Power
- 80 hp
- Configuration
- Inline 4
- Displacement
- 1.8L
- Weight
- 171 kg (377 lbs)
Authorizeddealer
View on Yamaha site dealerAbout this engine
Our 1.8-liter F115 Jet Drive outboard produces 80 hp at the pump. Its compact, lightweight DOHC design features 16 valves with four valves per cylinder and long tube intake tracks. This produces ample power for deck boats and deep-V hulls navigating shallow, rocky rivers.
Key features
- Fuel Economy
- Lightweight, Compact Design
- Incredible Maneuverability
- Powerful Hole Shot
- Optimum Performance
- INCREDIBLE MANEUVERABILITY
- ERGONOMIC CONTROL
- EASY ENGINE FLUSHING
Full specifications
- Weight †
- 171 kg (377 lbs)
- Full Throttle RPM Range
- 5000 ~ 6300 rpm
- Fuel Induction System
- EFI
- Recommended Engine Oil
- Yamalube® 4M (See owner's manual)
- Engine Type
- Inline 4
- Displacement
- 1.8L
- Bore x Stroke
- 81mm x 88.9mm (3.19 x 3.5 in)
- Prop Shaft Horsepower
- 80hp @ 5800rpm
- Alternator Output at W.O.T.
- 35 Amp
- Compression Ratio
- 10.0:1
- Recommended Fuel
- Octane 87
- Recommended Fuel Filtration
- Yamaha 10-Micron Fuel/Water Separating Filter (external)
- C.A.R.B. Rating
- 3-Star
- Exhaust
- Through Jet Nozzle
- Intake
- 16
- Ignition
- TCI Microcomputer
- Spark Plug
- LKR6E
- Starting System
- Electric
- Lubrication
- Wet Sump
- Engine Oil Capacity
- 3.2L/3.0L
- Recommended Cooling
- Thermostatic Control
- Ethanol Blend Limit
- 10% Maximum
- Gear Ratio
- Direct Drive
- Gear Shift
- Forward, Neutral, Reverse
- Shaft Length
- Fits 25" Transom
- Degree of Tilt
- 70°
- Degree of Trim
- -4 through 16°
- Mounting Centers
- N/A
- Steering Angle (maximum)
- 35° from center, either direction
- Warranty
- Limited 3 Year Limited Pleasure Boat - 1 Year Limited Commercial
