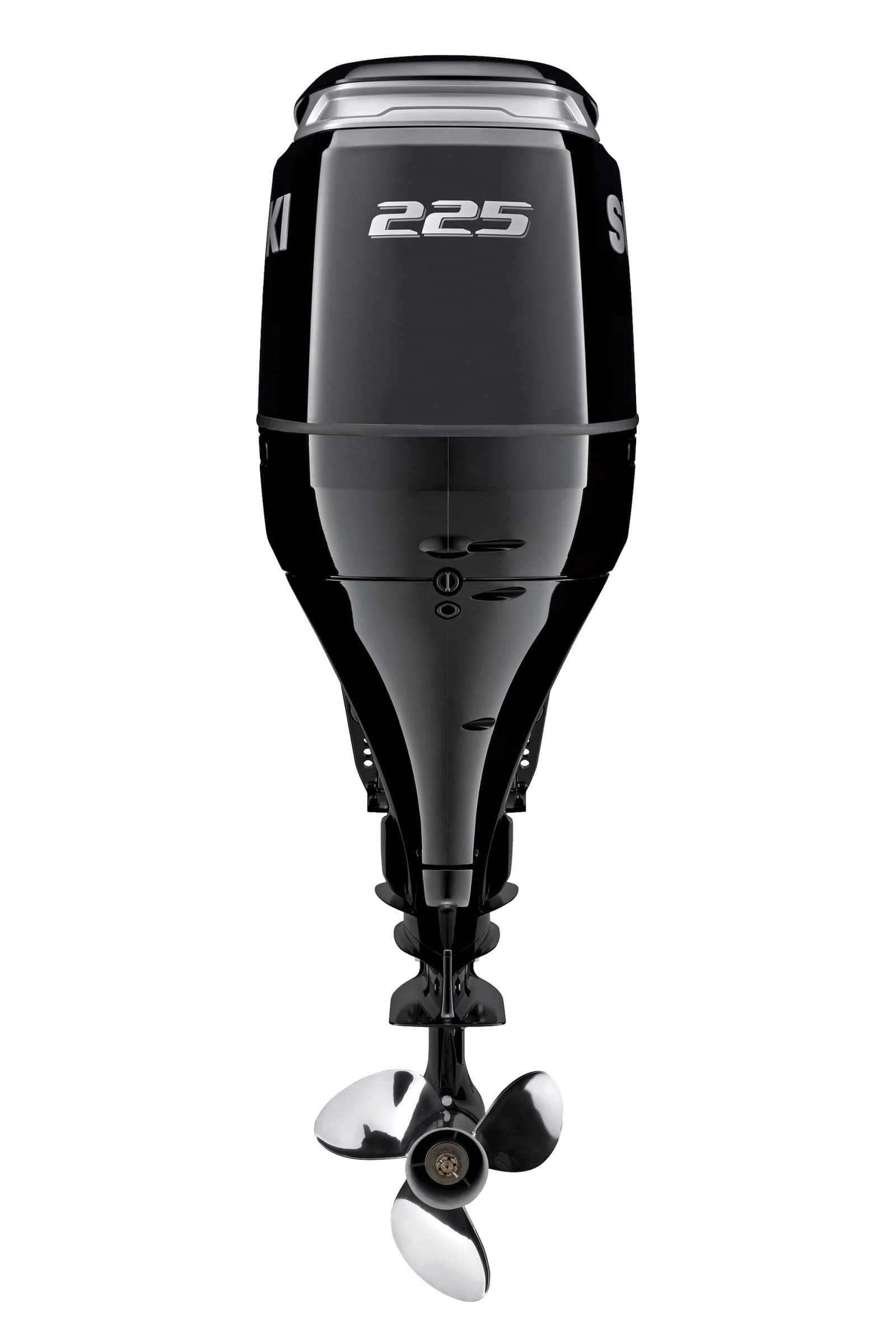

Suzuki DF225T
The DF225T is a mechanically controlled 3.6 liter V-6 model designed for compatibility with Suzuki’s CAN Bus system, which supports integration for rigging as well as features such as an easy start system, automatic trim, keyless starting, and troll mode.
All Suzuki outboards
High-Power
DF225T
- Power
- 225 hp
- Configuration
- V6 (55°) DOHC 24-Valve
- Weight
- 606 lb
Authorizeddealer
View on Suzuki site dealerAbout this engine
The DF225T is a mechanically controlled 3.6 liter V-6 model designed for compatibility with Suzuki’s CAN Bus system, which supports integration for rigging as well as features such as an easy start system, automatic trim, keyless starting, and troll mode. This V-6 engine includes dual overhead cam 24-valve powerheads, variable valve timing, multi-stage induction, updated cowling, and louvers to support performance and efficiency.
Key features
- Built to run. — The DF225 is capable of producing approximately 38 Amps of power, ensuring reliable operation for your vessel even at engine speeds as low as 1,000 rpm. This output is sufficient to meet all onboard electrical requirements under various con
Full specifications
- Body Color
- Pearl Nebular Black or White
- Recommended Transom Height (inches)
- X:25
- Starting System
- Electric
- Weight LBS
- X:606
- Engine Type
- DOHC 24-Valve
- Fuel Delivery System
- Multi Point Sequential Electronic Fuel Injection
- No. Of Cylinders
- V6 (55°)
- Piston Displacement inches (cc)
- 220.5 (3614)
- Bore X Stroke Inches (mm)
- 3.74 x 3.35 (95 x 85)
- Maximum Output HP
- 225
- Operating Range (RPM)
- 5000-6000
- Steering
- Remote
- Choke
- N/A
- Oil Pan Capacity quarts (liter)
- 8.5 (8.0)
- Ignition System
- Solid State Direct Ignition
- System Output
- 12V 54A
- Trim Position
- Power Trim and Tilt
- Gear Ratio
- 2.29:1
- Standard Propeller
- Optional See Dealer
- Propeller Selection
- 17 - 27.5
